- INPUT
HDMI: x4 (Frontx2:HDMI2.1 with CEC,HDCP ; Rearx2: [(HDMI2.1 with CEC, HDCP)x1+(HDMI2.1 with CEC, HDCP, ARC)x1]
RGB / VGA: x1
DisplayPort: x1
Ses: x1
RS232: x1
SD/SDHC: TF Card Slot(Micro SD)
OPS: x1 PC Slot
- OUTPUT
HDMI: x1 (HDMI 2.1, HDCP 1.x)
Ses: x1 (Line out)
SPDIF: x1 (optical)
- LAN
RJ45?: x2
- USB
Tip A: x5 (Front x2 and Rear x 2 with USB3.2 Gen 1, all support SmartPort USB ; Rear x 1 with USB 2.0 for system update)
Tip B: x2 (Front x 1 and Rear x 1 with USB3.2 Gen 1)
Tip C: x3 (Frontx1 with USB3.2 Gen 1, DP1.2, Ethernet 100M, PD 65W; Rearx1 with USB3.2 Gen 1, DP1.2, Ethernet 100M, PD 15W; Topx1 with USB3.2 Gen 1, PD 15W)
- HOPARLÖRLER
25W x 2 front soundbar + 20W x 1 subwoofer
- MICROPHONE
Built-in 8-array microphone
- Top Camera Plate
Yes
- COMPATIBILITY
RGB PC/HDMI PC: 1920x1080 @ 60Hz
HDMI: 3840x2160
DisplayPort: 3840x2160
- Bundled Software
Temel Not Alma Yazılımı: myViewBoard for Android
Profesyonel Not Alma Yazılımı: myViewBoard for Windows (embedded in VPC)
Kablosuz Sunum: AirSync
Device Management: Manager
ViewSonic Launcher: Yes
- Diğer Özellikler
All-in-one USB port: USB 3.2 Gen 1 “SmartPort USB” to all channels
IFP ve slot cihaz arasında kolay LAN paylaşımı: 10/100/1000M (USB Type-C 10/100, Android & PC 10/100/1000)
Light Sensor: Yes
NFC Reader: Yes
Pen Sensor for supporting Write Away: Yes
- Güç
Voltaj: 100-240V AC +/- 10% Wide Range
Tüketim: On: 99.84W ; ?ff:< 0.5 W
- ERGONOMICS

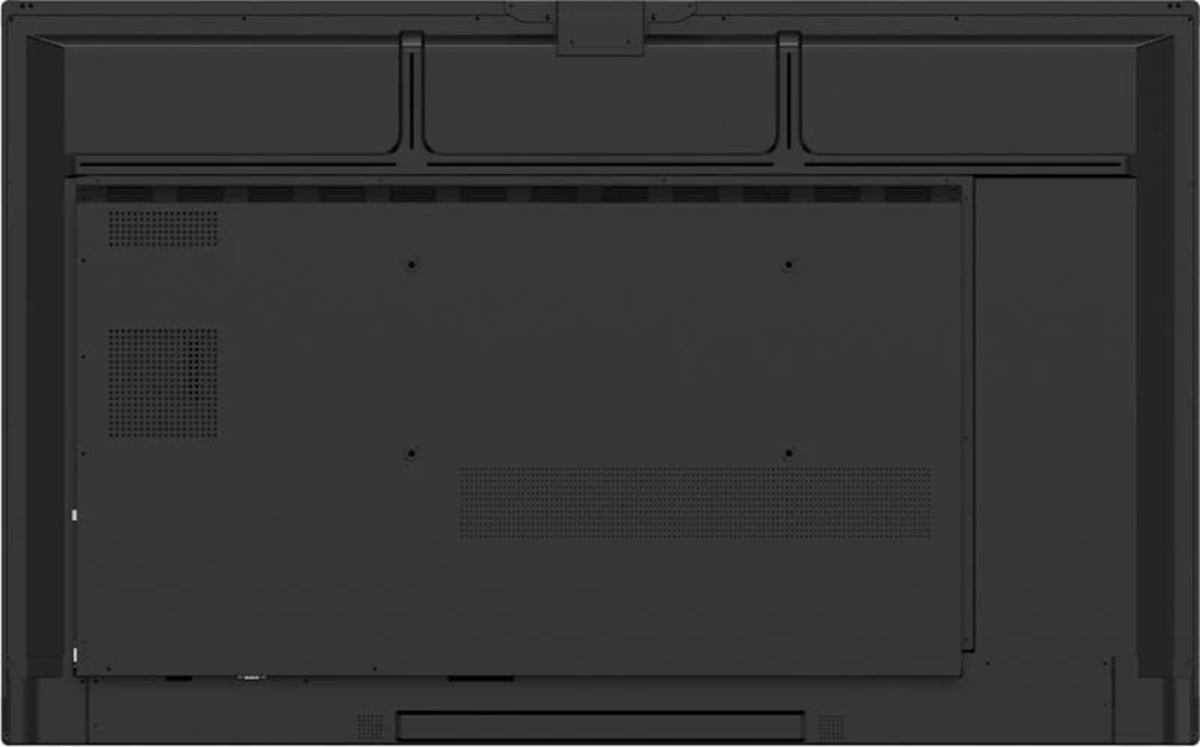

Duvara Monte (VESA® ): 800 x 400
- OPERATING CONDITIONS
Sıcaklık (º C): 0°C to 40°C
Nem: 20% ~ 80% RH non-condensing
- BOYUTLAR (G x Y x D)
Fiziksel (inç / mm): 67.29 x 40.85 x 3.36 in / 1709.1 x 1037.5 x 85.5 mm
Paket (inç / mm): 73.35 x 45.79 x 8.86 in / 1863 x 1163 x 225 mm
- WEIGHT
Net (lb / kg): 101.54 lb / 46.06 kg
Brüt (lb / kg): 126.88 lb / 57.55 kg
- REGULATIONS
cTUVus, FCC ID/IC ID, FCC SDoC, Energy Star 8.0, EMC/CE, CB/LVD, GOST-R/EAC, UkrSEPRO, EPEAT Silver, UK-EEL, BSMI, BIS, LBL( Low Blue Light Certification), Flicker Free, RoHS, ErP-Eco, REACH, SCIP, WEEE, TPCH , Packing waste, CA65, PAIA
- Energy Star sürümü
8.0
- EEI puanı
E
- PAKET İÇERİĞİ
1. Power Cord x1 3 meters,
2. USB Type-C cable x1 1.8 meters
, USB-IF certified
3. USB Touch cable x1 3 meters
4. Touch pen (Passive pen) x 2
5. Quick Start Guide
6. RS232 adapter x1
7. Clamp x 5
8. Camera Plate x1
9. Screw x 8 (camera 2+2, wall mount 4)
10. HDMI cable x1 3meters,
(HDMI LA certified)
11. Remote controller x1
12 AAA battery x2
13. Compliance statement
- Uyumlu Slot PC
VPCF5-W33-G1,
VPC37-W53-G1,
VPC35-W53-G1,
VPC-A31-O1
